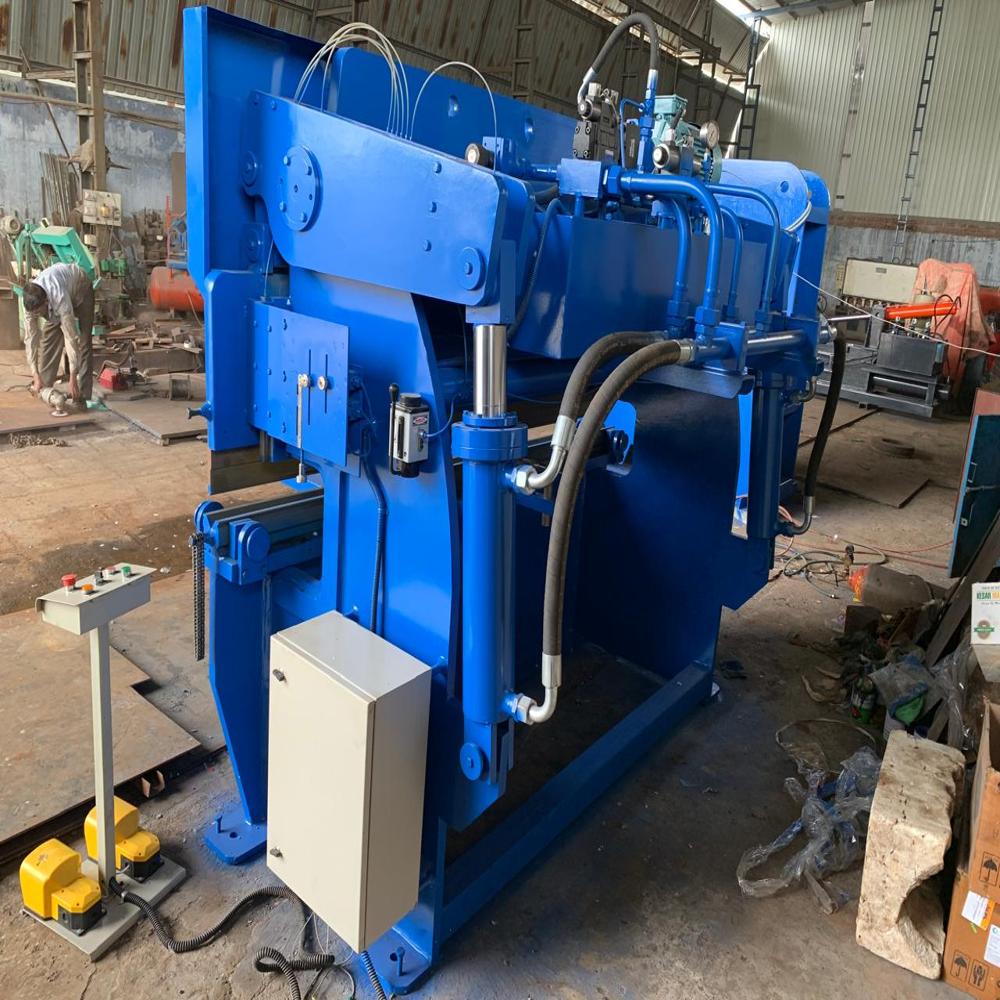

Hydraulic press Brake machine

About Hydraulic press Brake machine

• Frame: The main structure, often a C-frame design, made of high-strength steel to provide stability and resist deflection during high-pressure operations.
• Ram (Upper Beam): The moving part that holds the punch and descends vertically to exert force on the material.
• Bed (Worktable): The fixed lower platform that supports the die and the workpiece.
• Back Gauge: A positioning system located behind the bed that ensures the sheet is placed accurately for consistent and repeatable bends.
• Tooling (Punch & Die): Interchangeable sets that determine the final bend radius and angle. Common shapes include V-dies, gooseneck punches, and offset dies.
• Control System: Ranges from simple manual or NC (Numerical Control) systems to advanced CNC (Computer Numerical Control) platforms that automate complex, multi-step bending sequences.

• Hydraulic Press Brakes: The most common industrial type, using hydraulic cylinders for high power, consistent force, and versatility across many material thicknesses.
• CNC Press Brakes: Fully automated machines that use a computer to control multiple axes (ram, back gauge, and crowning), offering the highest precision (up to 0.01mm) and repeatability.
• Servo-Electric Press Brakes: Driven by electric motors and ball screws rather than hydraulic fluid. They are highly energy-efficient, faster, and require less maintenance.
• Mechanical Press Brakes: Older technology using a flywheel and clutch system. While fast for repetitive tasks, they lack the precise control and safety features of modern hydraulic or electric versions.

• Tonnage: The maximum force the machine can apply. Required tonnage depends on material type, thickness, and bend length.
• Bending Length: The maximum width of the sheet metal the machine can accommodate.
• Accuracy & Repeatability: Critical for tight-tolerance industries like aerospace and automotive.
• Axes of Control: Modern machines may have 3 to 8+ axes (X, R, Z1, Z2, etc.) to handle complex, asymmetrical parts without manual adjustments.

Precision Banding and Bending Capabilities

Engineered for industrial strength, the Hydraulic Press Brake Machine delivers precise banding and bending performance. Its hydraulic system, combined with controlled bending speed and substantial force, handles demanding metalworking tasks with accuracy. Operators benefit from the machine's ability to create consistent bend radii, essential for fabricating high-quality metal components.


Efficient and Safe Semi-Automatic Operation

The semi-automatic design integrates user-friendly controls and reliable hydraulic power, streamlining production while upholding worker safety. This configuration contributes to repeatable bending results and minimizes manual intervention, making the machine a trusted asset in high-output environments.


Built to Endure in Industrial Settings

Manufactured in India, the robust 4000 kg structure ensures enduring performance even under continuous use. The machine's versatile specifications allow it to meet the needs of manufacturers, service providers, and suppliers who prioritize long-term investment and operational reliability in their facilities.
